Royal Exclusiv Releases Speedy Pump with .5-10V Control

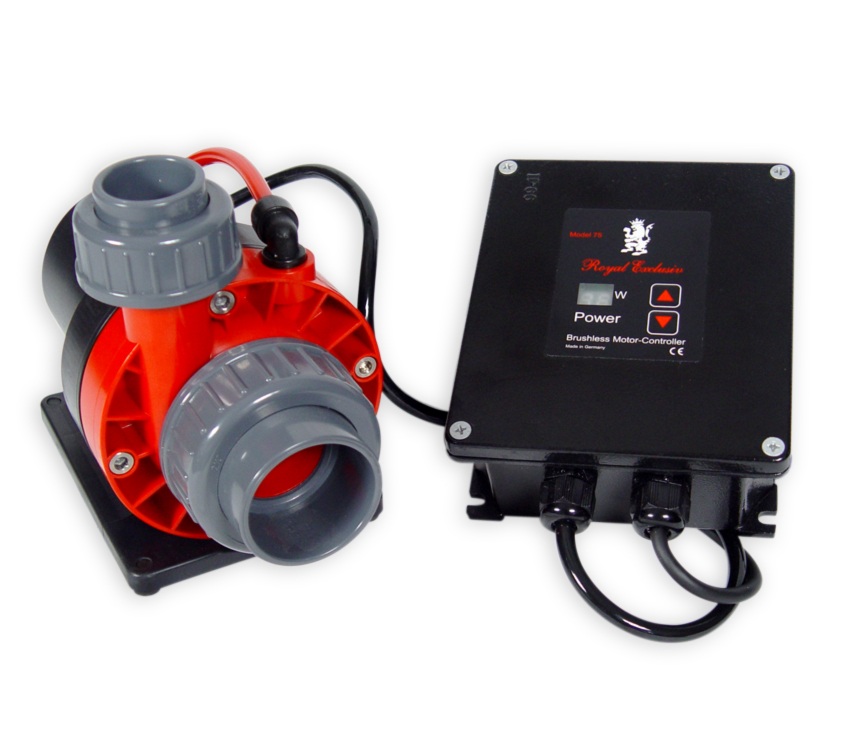

The Royal Exclusive Red Dragon Speedy RD3 80 watt Pump is now available. These pumps come equipped with interval controllability which is ideal for closed loop systems. These nearly silent pumps have the ability to create a closed loop system with wavemaker control built right into the pump when combined with an aquarium controller such as the Neptune Apex. Aquarium Specialty is now taking pre-orders for this product. We conservatively estimate that the initial shipment of pumps will arrive around early to mid August. Royal Exclusiv RD3 Speedy NEW 80W (with inkl. 0-10v connector) 8000L/h (2113 GPH) Red Dragon^® 3 Speedy pump 80 Watt / 8,0m³ AKB anti-lime-bypas with 10V connection Technical data Red Dragon^® 3 Speedy pump 80 Watt 8.0 m³: 80 Watt/h 5.2 mtr. pressure height speed adjustable brushless DC pump Watt-Display at the controller /// in 5Watt steps adjustable intake side 50 mm - pressure side 32 mm operating voltage: 110V/60Hz Protection class pump: IP 68 control unit: IP 66 Weight pump: 3.6 kg Weight controller: 1.1kg Height of intake side: center 70 mm Dimension pump: 130 mm wide / 235 mm length / ~ 190 mm height Dimension control unit: 140 mm breit / 190 mm length / ~ 70 mm height Circulation pump capability is designed into each pump! Prepared for connection to an aquarium computer (E.g. GHL) via a 0-10V interface. Tested so far following these two computers:

Neptune Systems the Apex Aqua Controller and GHL
Pulsing in 5 second intervals is possible.

Functioning of the electronics: Once a voltage > 0.5V to the 10V interface is, the interface adapter takes over control of the system and locks(disables) the buttons on the controller. Voltage will be < 0.5V normal controller operation and the buttons are again released. This allows the interface adapter to stay connected without performing a function. If the Aquarium(tank)-computer voltage under 0.5V the 0-10V interface is shut down and the pump can be operated manually.From 0.5V, the interface will take over control of the scheme. In the area of 0,5V-0,8V the pump is switched off. 1V starts the pump at the lowest level (15W) and run. At an increase of 0.5V will increase the level, also. So 1V = 15W 1.5V = 20W 2V = 25W….. 7.5V = 80W. At a higher input voltage, the Speed controls remain available instead of automatically increasing.
