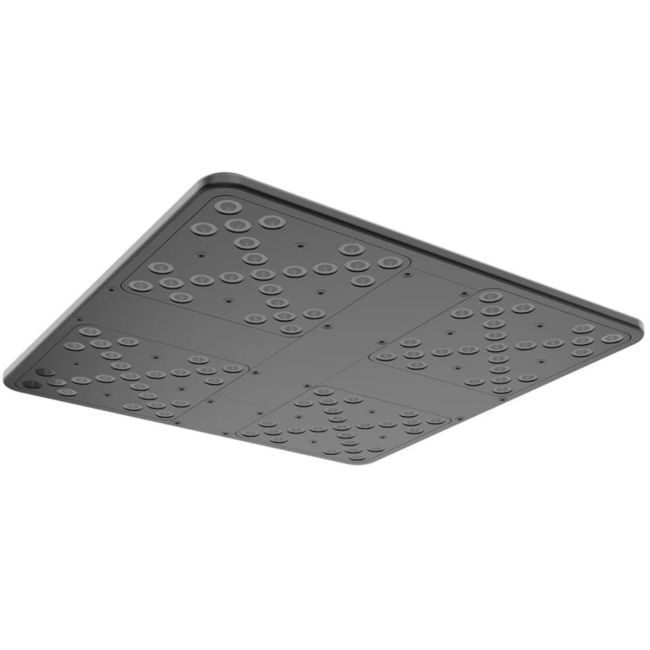

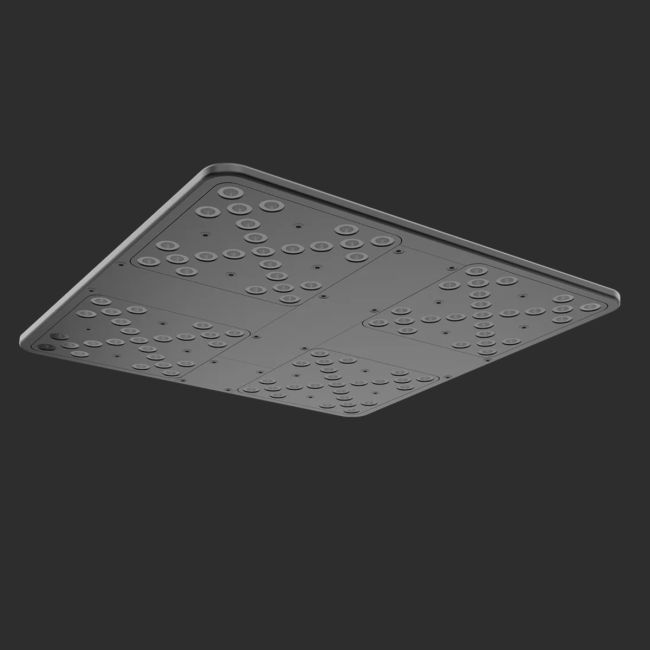

ATI Straton X (Coming Soon)
SKU
ATI-STRATX
$1.00
Coming Soon
The ATI Straton X is sure to be a game changer for the high end reef aquarium enthusiasts. For more information on these LED lights, please visit our learning center article.
The price on this LED has not be set for the US market at this time and the $1.00 price tag is simply a place holder for the website.
Features
Noise-free:
Conventional LED lights require fans for cooling – these generate noise, increase the overall height, and are subject to wear and tear. The Straton X completely eliminates this: Modern high-power LEDs and an efficient aluminum heat sink make fans and their maintenance unnecessary – for absolutely silent operation.
Full Aluminum Design:
The Straton X impresses with its precisely manufactured aluminum housing. This not only ensures an elegant appearance but also high stability and durability. At the same time, the aluminum allows for efficient heat dissipation – a crucial advantage for the lifespan and performance of modern LEDs. The Straton X is a true premium product made with high-quality materials, setting new standards in workmanship and design.
Natural Shimmer:
Soft Shadow Technology:
Even light for healthy corals: Classic LED lights with small, focused light sources often create hotspots – areas with too much light in the center, while areas at the edges are too dimly lit. The Straton X deliberately uses a large surface area with 100 individual light sources, ensuring even illumination across the entire aquarium. This allows corals to receive light From multiple sides, reducing self-shading and promoting healthy, uniform growth.
Instead of promises, we rely on facts: We have introduced meaningful and practical key performance indicators that clearly demonstrate the performance of the Straton X – ideal for planning the optimal light levels for aquariums and coral farms, or for comparisons with other LED systems on the market. Thanks to integrated PAR and current measurement, the performance values are always transparent and traceable via the app.
Key figures at a glance:
Key figures at a glance:
- Absolute Performance - With 1,800 PAR At a distance of 20 cm (8 in), the Straton X delivers light output comparable to direct tropical sunlight. This is made possible by the use of the latest G3 technology, which achieves significantly higher output compared to the previous generation.
- Average area performance: At a practical distance of 60 cm (24 in), the Straton X achieves impressive results on an area of 60×60 cm (24x24 in). 390 PAR on average– and all this with a power consumption of just 150 W.
- Relative Performance: The area coverage results in an excellent relative performance of 2.6 PAR/Watt. This makes the Straton X one of the most efficient LED reef lights in its class.
Illumination area and PAR distribution: The Straton X was designed for particularly broad and even coral illumination and PAR distribution. To illustrate this performance transparently and practically, we have defined two key figures – each measured at a distance of 60 cm (24 in) From the light, ensuring that the central area of the aquarium (approx. 30–40 cm (12- 16 in) below the water surface) is also covered.
These values impressively demonstrate how efficiently the Straton X, with only 150 W maximum power, enables large-area lighting for various aquarium types.
- SPS 200 area: A PAR value of at least 200 µmol/m2/s is considered necessary for keeping demanding SPS corals – the Straton X achieves this value up to a diameter of 85 cm (34 in), which corresponds to an area of 0.567 m2.
These values impressively demonstrate how efficiently the Straton X, with only 150 W maximum power, enables large-area lighting for various aquarium types.
- PAR-to-price ratio:
A simple wattage comparison in relation to the purchase price is not very informative. What matters is how much usable light is produced per euro invested. Our tests show: The Straton X offers outstanding performance. PAR-to-price ratio and is playing at the very top.
Performance summary: More light. Less consumption. Maximum control. The Straton X produces up to twice as much usable light as many other LED systems at the same power consumption. This means: less energy consumption, lower operating costs, and impressive light output. This saves energy, protects the environment and your wallet, and allows your corals to visibly grow.
Hybrid Reef Spectrum -
Reef full spectrum with high blue content:
Conventional LED lights typically rely on daylight or blue light. The Straton X combines both: As a true full-spectrum reef light, it flexibly produces any desired light spectrum – From bright daylight to intense blue light. For maximum efficiency, we use the world's most powerful high-power LEDs – selected across manufacturer boundaries to extract the best performance with each color channel. Compared to previous models, the blue light has been further enhanced to accentuate fluorescent coral colors. At the same time, improved white and cyan white tones provide greater overall brightness and more vibrant, striking coral colors.
Straton X - LED overview
UV (405 nm): x 8 Diodes
- Promotes green fluorescent pigments
Violet (420 nm): x 8 Diodes
- Promotes green fluorescent pigments
- Additionally offers photosynthetic
usable radiation
Royal Blue (450 nm): x 20 Diodes
- Promotes especially green and red
fluorescent pigments - High photosynthetically usable
radiation
Blue (470 nm): x 28 Diodes
- Especially promotes red, orange and yellow
- Fluorescent pigments
- Highest photosynthetically usable
Radiation increases color diversity and
growth
Cyan White: x 16 Diodes
- Promotes striking pigments
(Pocilloporins) in many PLCs - Natural spectrum
White: x 16 Diodes
- Promotes striking pigments
(Pocilloporins) in many PLCs - Natural brightness
Red (625 nm): x 4 Diodes
- Enhances red tones and contrasts
Sum Total: 100 Diodes
- Perfectly tuned full spectrum setup
Reef Pilot App – Navigate Your Reef
ATI Reef Pilot App
Intelligent control and full control: The Straton X can be conveniently controlled via smartphone – with the new ATI Reef Pilot App for iOS and Android.
- Easily program individual light gradients and spectra.
- Smooth transitions & precise intensity control
- Adopt settings From leading coral farmers (templates)
- Individual or group control of all lights
- LIVE ENERGY: Monitor electricity consumption in real time
- LIVE PAR: Display PAR values live at different water depths
Flexible Mounting – Custom Mounting
Three options: cable suspension, mounting arm, mounting rail
Straton X Mounting Arm
- Mounting arm for attaching the Straton X to the rear window Seamless Mount
- Seamless fastening for a minimalist look
- Suitable for pool aquariums without bridges
- Glass thickness 8–19 mm
- Adjustable in height and depth
- Aquarium width (measured From front to back): 45–65 cm (17-26 in)
- Adjustable distance to the top of the aquarium: 19–28 cm (Recommended distance to the water surface: 25–30 cm)
- Integrated cable routing
- Material: Aluminum (arm) and plastic (mounting)
- Color: Galaxy Grey
Made in Germany – Precision born of passion
Made in Germany by Reef Enthusiasts: For over 25 years, ATI has stood for innovative aquarium lighting technology. With the Straton X, we consistently rely on German precision: milling to circuit board assembly – every light is manufactured entirely in Germany. Milled with solid material and manufactured to the highest standards – this is how we guarantee maximum quality and durability Made in Germany.
Straton X - Technical specifications at a glance
Dimensions & Weight:
Dimensions: 364 × 364 × 9 mm (14.3 × 14.3 × 0.35 in)
Weight: 2,500 g
Material & Design:
Material: Aluminum
Color: Galaxy Grey, powder-coated
Design: Ultra-thin, fanless
Power supply:
Input: 100–240 VAC, 2.5 A, 50–60 Hz, 160 W (max.)
Output: 150 W (max.)
PAR performance data (1 PAR = 1 µmol/m²/s):
- SPS illumination: min. 200 PAR on Ø 85 cm (0.567 m²) @ 60 cm
- LPS Illumination: min. 100 PAR on Ø 100 cm (0.785 m²) @ 60 cm
- Max. PAR: 1,800 @ 20 cm
- Ø PAR: 390 @ 60x60x60 cm
- 2.6 PAR/Watt @ 60x60x60 cm
- Good PAR-to-price ratio
LED configuration:
- 100 High Power LEDs
- 100 individual reflectors
- 7 different LEDs
Installation:
Recommended distance: 25–30 (9.84" - 11.81") From the water surface
Mounting options:
- rope suspension
- Mounting arm with seamless attachment
- Mounting rail
Steering:
- Via ATI Pilot App
- LIVE PAR display
- LIVE Energy Monitoring
| Manufacturer | ATI |
|---|
