W. Lim Wave I Series Pumps

1/15 HP Wave I Pump:

• WAVE -This pump requires a cover for outdoor use.
• (Built with Emerson Motor)
• 1-1/2" inlet and outlet.
• 0509 Wave 1/15 HP 3000 GPH / 3.40 ft. Head
• 16 Lbs. ......... / 1.3 Amps @ 115 Volts

1/4 HP Wave I Pump:

• Industrial Baldor Motor custom built for W. Lim Corporation Worldwide electrical capability - 115v / 230v ; 50 / 60 Hz TEFC- 1425/1725 RPM motor
• 3 year limited warranty (on the motor)
• Salt water resistant (corrosion Epoxy Paint added on) Buna Seal- for saltwater use (longer life) Wet-end built with stainless steel screws
• Strong glass filled ABS injection housing Custom Designed and Engineered for Whisper
• Quiet operation High Flow 2" ports Includes 2 quick disconnect unions
• Pre-wired for 115V and 6 ft. industrial cord
• 24 Hour Dry-run safety

1/6 HP Wave I Pump:

• Industrial Baldor Motor custom built for W. Lim Corporation Worldwide electrical capability - 115v / 230v ; 50 / 60 Hz TEFC- 1425/1725 RPM motor
• 3 year limited warranty (on the motor) Saltwater resistant (corrosion Epoxy Paint added on) Buna Seal- for saltwater use (longer life)
• Wet-end built with stainless steel screws Strong glass filled ABS injection housing Custom Designed and Engineered for Whisper Quiet operation
• High Flow 2" ports Includes 2 quick disconnect unions
• Pre-wired for 115V and 6 ft. industrial cord
• 24 Hour Dry-run safety

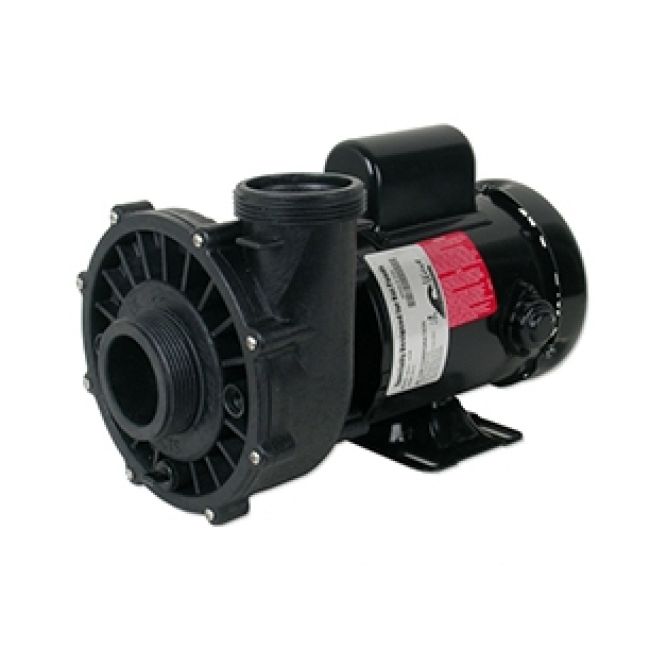

1/8 HP Wave I Pump:

• Industrial Baldor Motor custom built for W. Lim Corporation Worldwide electrical capability - 115v / 230v ; 50 / 60 Hz TEFC- 1425/1725 RPM motor
• 3 year limited warranty (on the motor)
• Salt water resistant (corrosion Epoxy Paint added on) Buna Seal- for saltwater use (longer life) Wet-end built with stainless steel screws Strong glass filled ABS injection housing Custom Designed and Engineered for Whisper Quiet operation
• High Flow 2" ports Includes 2 quick disconnect unions Pre-wired for 115V and 6 ft. industrial cord 24 Hour Dry-run safety
