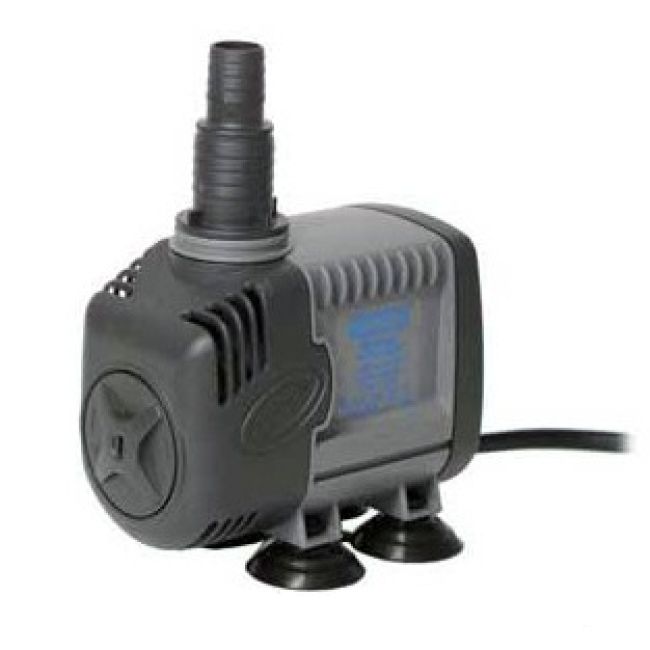

TUNZE Silence Recirculation 1073 Series Pumps

Tunze offers 4 different Silence Recirculation Series Pumps.  All may be used submerged or external to the water.

Model 1073.008:

Pumping power: 150 to 800 l/h (40 to 210 US gal./h).
Energy consumption: 3 to 8 W.
Pumping head: 1.25 m (49.2 in.), ½" GAS hose supports
Voltage (115 V / 60Hz).
Cable length: 2 m (78.7 in.).
Dimensions without outlet and suction cups: 87 x 67 x 48 mm (3.4 x 2.63 x 1.88 in.).

Model 1073.020:

Pumping power: 200 to 2,400 l/h (50 to 630 US gal./h).
Energy consumption: 14 to 30 W (15 to 34 W)
Pumping head: 2 m (78.7 in.)., ¾" NPT hose supports
Voltage / frequency: (115 V / 60 Hz).
Cable length: 2 m (78.7 in.).
Dimensions without outlet and suction cups: 118 x 94 x 75 mm (4.6 x 3.7 x 2.9 in.).

Model 1073.040:

Pumping power: 300 to 3,000 l/h (80 to 790 US gal./h).
Energy consumption: 16 to 42 W (18 to 47 W)
Pumping head: 3 m (118 in.)., ¾" NPT hose supports
Voltage / frequency: (115 V / 60 Hz).
Cable length: 2 m (78.7 in.).
Dimensions without outlet and suction cups: 118 x 94 x 75 mm (4.6 x 3.7 x 2.9 in.).

Model 1073.050:

Flow rate at 18 V: 900 to 2,200 l/h (240 to 580 US gal./h).
Flow rate at 24 V: 1,100 to 3,000 l/h (290 to 790 US gal./h).
Hmax. at 18 V: 2.5 m (98.4 in.).
Hmax. at 24 V: 3.9 m (153.5 in.)
¾" NPT hose supports
Energy consumption at 18 V: max. 26 W.
Energy consumption at 24 V: max. 43 W.
Voltage / frequency: 100 – 240 V / 50 – 60 Hz
Cable length: 5 m (196.8 in.).
Dimensions without outlet and suction cups: 118 x 94 x 75 mm (4.6 x 3.7 x 2.9 in.).
