Recommended for salt water aquariums up to 1,200 liters (317 US gal.).
Immersion depth from 140 to 240 mm (5.5" - 9.5").
Dimensions without post-filter (L x W x H): 250 x 180 x 415 mm (9.8" x 7.0" x 16.3")
Water flow rate: adjustable up to 1,200 l/h (317 US gal.)
Air flow performance: adjustable up to 750 l/h (198 US gal./h)
Energy consumption: up to approx. 16 W,
Power supply unit: 100-240V / 50-60Hz
Cable length: 3 m (118") up to Turbelle® controller
Skimmer cup volume: 0.7 liters (0.18 US gal.)
Due to its biotope composition, every marine aquarium has a different sensitivity with respect to the organic load. Based on a standard marine aquarium with leather corals, the data on the suitable aquarium size may differ for other biotope compositions. For this reason, the aquarium volumes recommended for the skimmer should be reduced for more sensitive biotopes, if and when necessary.
leather coral aquariums with long-polyp corals and anemones, for example, the load of dissolved organic matter may be higher, sometimes it may even be vital.
The DOC Skimmer can be used for the recommended aquarium volume without reductions.
Average sensitivity, 40% reduction
Amedium organic sensitivity is usually found in mixed aquariums inhabited with leather and stoney corals (LPS). Filters, sponges, etc. can also be found there. A DOC skimmer that is designed for 1,000 liters (264 USgal.) is likely to only skim 40% of organic substances with this light pollution.
Thus, a DOC skimmer for 1,000 liters (264 USgal.) should be used for a tank with a maximum content of approx. 600 liters (158 USgal.).
Increased sensitivity, 60% reduction
Aquariums with primarily small-polyp stoney corals (SPS) require an especially high degree of purity. They should have no load of phosphates or nitrates worth mentioning. Good oxygen saturation and very clear water are the pre-requisites. In this type of aquarium, the DOC skimmer is frequently used as a "stand-alone solution".
Thus, a DOC skimmer for 1,000 liters (264 USgal.) should be used for a tank with a maximum content of approx. 400 liters (106 USgal.).
High sensitivity and high load,
70% reduction
Hard coral aquariums (SPS) with a high population of fish require an extremely high skimming capacity. The skimmer has to ensure the proper degree of purity for hard corals in case of an excessive fish burdening, whereas an especially high performance is required if it's used as a "stand-alone solution".
Thus, a DOC skimmer for 1,000 liters (264 USgal.) should be used for a tank with a maximum content of approx. 300 liters (79 USgal.).
Especially for Comline® DOC skimmers used as contact skimmers for breeding tanks with plankton, 70% reduction
Stone coral aquariums or other breeding tanks with plankton food require an especially high degree of purity. Good oxygen saturation and very clear water are the pre-requisites.
Thus, a Comline® DOC skimmer for 1,200 liters (317 USgal.) should be used for a tank with a maximum content of approx. 360 liters (95 USgal.)

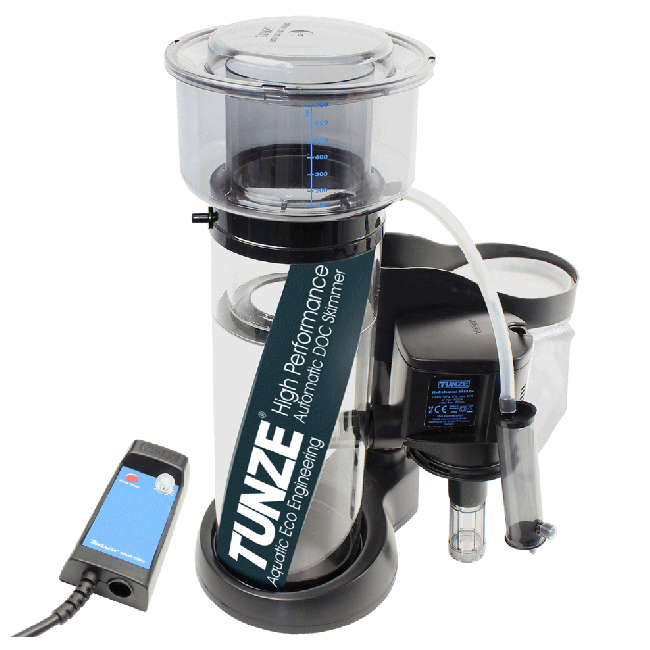

Skimming, filtering and aerating a saltwater aquarium without power consumption is impossible. But, no unit uses less current than TUNZE® DOC Skimmer 9410. At a power consumption of only 11 W (15 W), the DOC Skimmer has equivalent performance to much larger skimmers consuming more than twice as much power. In addition, no settings are required, it is extremely silent and it is easy to operate.
Controller. Micro-processor controlled PM motor operating on safety extra-low voltage of 12 V to 24 V. Blocking and run-dry protection.
| Manufacturer | Tunze |
|---|
