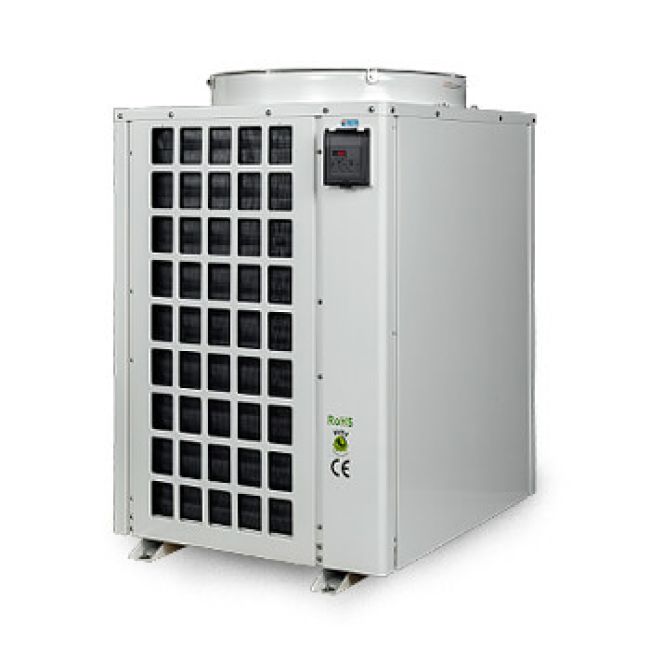

Teco TK-15K 6 HP Heat Pump

HIGH-PERFORMANCE REFRIGERATION TECHNOLOGY

TK Heat Pumps use internationally-recognized rotary compressors with a titanium coaxial heat exchangers to ensure low-energy consumption while sustaining the highest in performance throughput. The technology in these heat pumps allows one to decrease noise levels and achieve a high COP (coefficient of performance) contributing to significant energy savings.

DIGITAL THERMOSTAT

The setting of functions is intuitive and the temperature detection is accurate, resolution 0.1°C/0.2°F. The setting range is 0°-35°C (32°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms. Possibility to monitor the chiller even remotely, degree of protection IP24.

EFFICIENT DESIGN

The unit is characterized by a solid structure and was designed to provide maximum oxidation protection—great for use with salt-water.

UNIQUE FEATURES

TK Heat Pumps are also suitable suitable for many industrial applications.

Technical Specifications

Recommended Aquarium Size		please contact us for specific sizing
Minimum Flow Rate		1,700 gallons per hour (gph)
Horsepower		6 HP
Maximum Pressure		29 psi
In/Out Water Connection		1.5" tube diameter
Cooling Power		14.60 kilowatts (kW)
Power Supply		240-volts, 60Hz - 3 phase / 15.2 Amps
Required Breaker		60 Amp
Gas/Refrigerant		R410A
Power Consumption (Cooling)		6,900 watts - 23,500 BTU/hr
Power Consumption (Heating)		4,100 watts - 14,000 BTU/hr
Working Modes		Cool, Heat
Weight		286.6 lbs (130 kg)
Dimensions		26.18" x 28.54" x 41.02"
