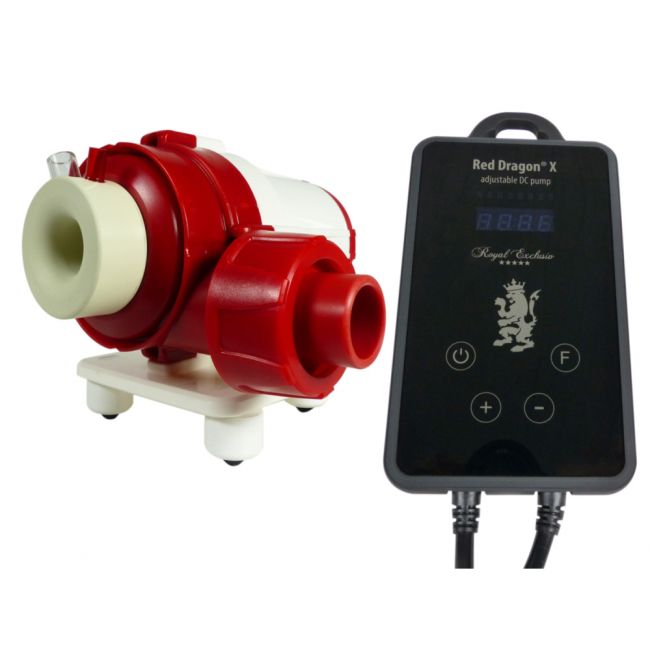

Red Dragon® X skimmer pump 50 Watt / 1.500 l/h with 24V Technology
for Mini Bubble King 200 VS21 for Bubble King® Double Cone 180 + 200 for Bubble King® SuperMarin 200 for Bubble King® DeLuxe 200
Technical data Red Dragon® X pump 50 Watt / 1.500 l/h air intake: max. 50 Watt/h, adjustable 15-50 Watt speed adjustable Brushless DC pump (24V Technology) Intake side: Nozzle with ozone & air plug Pressure side: reducing ring Ø 32 mm Delivery rate: max. 1.500 l/h air-intake // max. 4.000 l/h water-intake Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available) (24V Technology) Protection class pump: IP 68 control unit: IP 66 Weight pump: 2,3 kg Dimension pump: 110 mm wide / 190 mm length / ~ 150 mm height Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
Saltwater resistant M4 grade 2 titanium screws
Saltwater resistant parabolic rubber feet for acoustic decoupling
Extreme low noise brushless DC-delivery pump with external control electronics
High efficient technology, Sine Wave for very quiet running
Easy usage and maintenance, low risk of calcification
compact design against vibrations and oscillation
CE conformity, developed and built
high quality touchscreen display with feeding function (protection against dry-running, over heating, over voltage, blocking etc.)
included in the scope of delivery:
Pump with 2m supply line
Controller with 1,5m supply line
Power plug with 1,5m supply line / rubber connector
