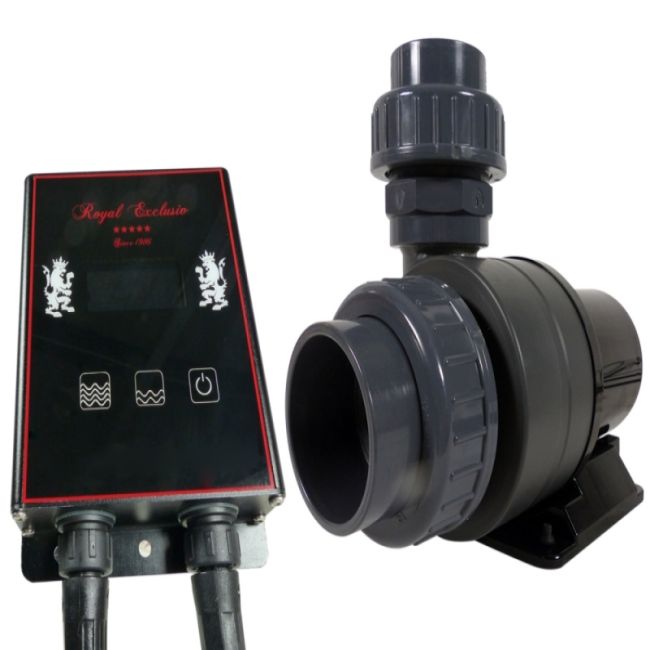

Royal Exclusiv Red Dragon 5 ECO 200 Watt 19.0m³ (5000 GPH) Flow
SKU
RE-870-1
$1,229.00
Factory Direct - Usually Ships Out Within 3-4 Days
Red Dragon® 5 ECO pump 200 Watt / 19,0m³ = 5000 GAL / 36V
FLOW VERSION
Technical data Red Dragon® 5 ECO pump 200 Watt 19,0 m³:
200 Watt/h 6,75 mtr. / 22' pressure height
Speed adjustable Brushless DC pump
Watt-, Power consumption and Revolution per minute (rpm) - Display
Adjustable in 5-watt-steps from 5W up to 200W
intake side 63 mm (2") - pressure side 50 mm (1.5")
Operating voltage: 100-240 Volt 50-60 Hz (36V Technology)
Protection class pump: IP 68 control unit: IP 54
Weight pump without controller: 4,5 kg
Height of intake side: center 75 mm
Dimension pump, with screw connections: 130 mm wide / 250 mm length / ~ 220 mm height
Dimension pump, without screw connections: 130 mm wide / 210 mm length / ~ 190 mm height
Dimension control unit: 50 mm wide / 100 mm length / ~ 140 mm height
Features:
- Saltwater resistant M5 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external power electronics
- High efficient technology, Sine Wave for very quiet running
- Inlet and Outlet complete with DIN connection, compact dimensions
- Easy usage and maintenance, low risk of calcification
- Heavy and massive craftsmanship against vibrations and oscillation
- CE conformity, developed and built
- quality power supply from "Mean Well"
- high quality touchscreen display with a lot extra functions
(protection against dry-running, over heating, over voltage, blocking etc.) - 10V connection/controlling with 3.5mm TS-connector (phone jack)
- 3m cable between pump and controller
- 1,5m cable plug connection EU/US (Rubber connector)
| Manufacturer | Royal Exclusiv |
|---|
