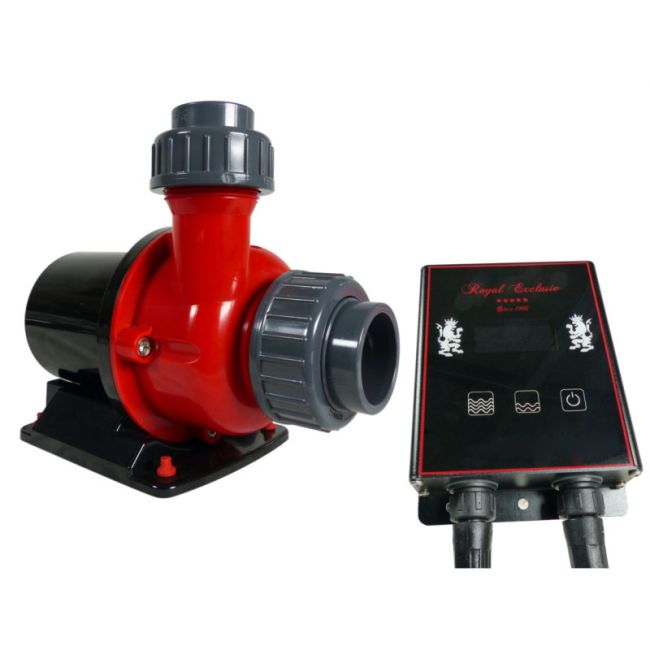

Royal Exclusiv Red Dragon 5 ECO 200 Watt 13.0m³ (3500 GPH) Highpressure
SKU
RE-870-HP-1
$1,175.00
Factory Direct - Usually Ships Out Within 3-4 Days
Red Dragon® 5 ECO pump 200 Watt / 13,0m³ = 3.500GAL / 36V
HIGHPRESSURE
Technical data Red Dragon® 5 ECO pump 200 Watt 13,0 m³:
200 Watt/h 8,5 mtr. / 30' pressure height
Speed adjustable Brushless DC pump
Watt-, Power consumption and Revolution per minute (rpm) - Display
Adjustable in 5-watt-steps from 5W up to 200W
intake side 40 mm (1.25") - pressure side 32 mm (1")
Operating voltage: 100-240 Volt 50-60 Hz (36V Technology)
Protection class pump: IP 68 control unit: IP 54
Weight pump without controller: 4,5 kg
Height of intake side: center 75 mm
Dimension pump: 130 mm wide / 240 mm length / ~ 190 mm height
Dimension control unit: 50 mm wide / 100 mm length / ~ 140 mm height
Features:
- Saltwater resistant M5 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external power electronics
- High efficient technology, Sine Wave for very quiet running
- Inlet and Outlet complete with DIN connection, compact dimensions
- Easy usage and maintenance, low risk of calcification
- Heavy and massive craftsmanship against vibrations and oscillation
- CE conformity, developed and built
- quality power supply from "Mean Well"
- high quality touchscreen display with a lot extra functions
(protection against dry-running, over heating, over voltage, blocking etc.) - 10V connection/controlling with 3.5mm TS-connector (phone jack)
- 3m cable between pump and controller
- 1,5m cable plug connection EU/US (Rubber connector)
| Manufacturer | Royal Exclusiv |
|---|
