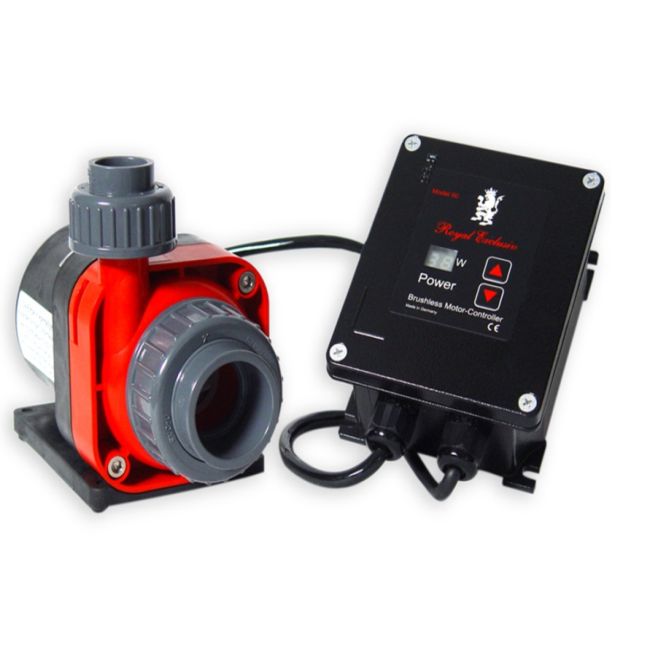

Technical data Red Dragon®3 Mini Speedy Pump 50 Watt 5.0m³: 50 Watt/h 4.0 mtr. pressure height speed adjustable Brushless DC pump intake side 40 mm - pressure side 25 mm operating voltage: 110V/60Hz available Protection class pump: IP 68 control unit: IP 66 Weight pump: 3.2 kg Height of intake side: center 70 mm Dimension pump: 110 mm wide / 200 mm length / ~ 160 mm height Dimension control unit: 120 mm wide / 170 mm length / ~ 65 mm height
Saltwater resistant M6 grade 2 titanium screws
Saltwater resistant parabolic rubber feet for acoustic decoupling
Extreme low noise brushless dc-delivery pump with grouted power electronics
High efficient technology "Made in Germany"
Inlet and Outlet complete with DIN connection, compact dimensions
High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
Heavy and massive craftsmanship against vibrations and oscillation
CE conformity, developed and built according to VDE guidelines
