for aquariums/tanks from 396 - 1056 gallons (1.500 liter - 4.000 liter)

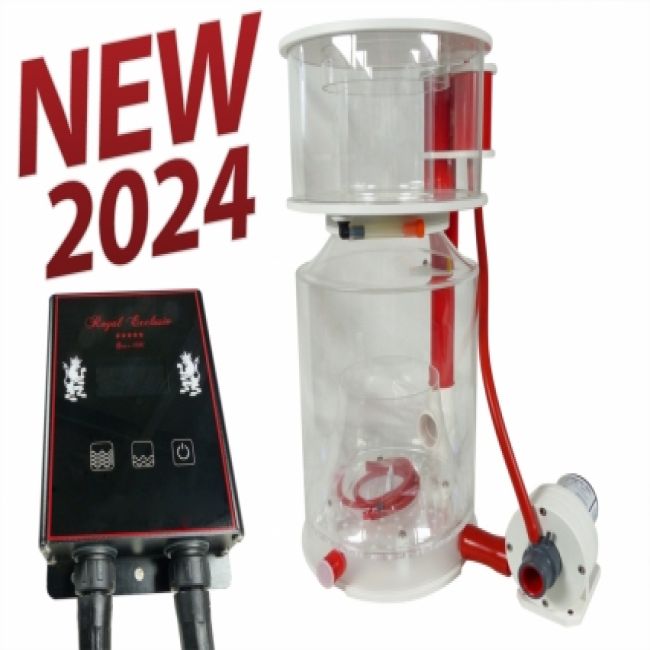

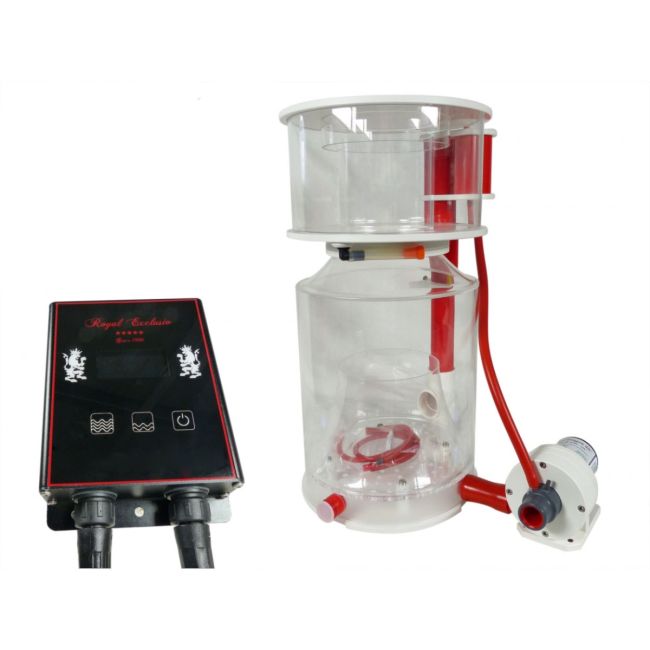

hard facts Bubble King® Supermarin 300 internal: adjustable Red Dragon® 3 Mini Speedy 60 Watt 660gal/h (2.500 l/h) pump motor speed adjustable: 400-4000 1/min Base plate: Ø 12.60ʺ / height ~ 23.62ʺ (Ø 32 cm / height ~ 60 cm)
Technical data Bubble King® Supermarin 300 internal: Skimmer-pump: motor speed adjustable Bubble King Red Dragon® 3 Mini Speedy pump 60 Watt 2.500 l/h Delivery rate adjustable: max. 660gph (2.500 l/h) Air inlet and max. ~ 1585gph (6.000 l/h) Water inlet wattage - active power: P = min.15Watt - max.60 Watt operating voltage: 110 Volt 60 Hz (also in 230V/50Hz available) Protection class: IP 68
Weight skimmer: 11 kg inclusiv pump Water level: ~ 180 mm up to ~ 230 mm
Dimension skimmer without pump: 380 mm wide / 340 mm length / ~ 590 mm height Dimension skimmer with pump (90 ° to torque tube): 480 mm wide / 420 mm length / ~ 590 mm height Dimension skimmer with pump (compared with torque tube): 550 mm wide / 350 mm length / ~ 590 mm height Height silicon outlet (clean-out) ~ 420 mm
Red Dragon® 3 Mini Speedy Pump 60 Watt / 2500 l/h Technical data Red Dragon® 3 Mini Speedy pump 60 Watt / 2500 l/h air intake: max. 60 Watt/h, adjustable 15-60 Watt speed adjustable Brushless DC pump Intake side: Nozzle with ozone & air plug Pressure side: Ø 32 mm (1 1/4′′) Delivery rate: max. ~ 660 gal/h Air inlet max. ~ 1585 gal/h Water inlet Operating voltage: 110 Volt 60 Hz (also in 230V/50Hz available in future) Protection class pump: IP 68 control unit: IP 66 Weight pump: 3,75 kg Height of intake side: center 60 mm Dimension pump: 3.94 ′′ wide / 6.30 ′′ length / ~ 5.51 ′′ height 100 mm wide / 160 mm length / ~ 140 mm height Dimension control unit: 5.51 ′′ wide / 7.48 ′′ length / ~ 2.76 ′′ height 120 mm wide / 160 mm length / ~ 65 mm height
Saltwater resistant M6 grade 2 titanium screws
Saltwater resistant parabolic rubber feet for acoustic decoupling
Extreme low noise brushless dc-delivery pump with grouted power electronics
High efficient technology "Made in Germany"
compact dimensions
High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
Only saltwater resistant pump with titanium rotor, titanium stator and shriveled bearings
Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purging
Heavy and massive craftsmanship against vibrations and oscillation
CE conformity, developed and built according to VDE guidelines
Red Dragon® 3 Mini Speedy Pump 60 Watt with 10V connection Functioning of the electronics: Once a voltage > 0,5V to the 10V interface is, the interface adapter takes over controlling and the system and lock(disable) the buttons on the controller. Voltage will be < 0,5V normal controller operation and the buttons are again released. So can the interface adapter stay connected without performing a function.
If the Aquarium(tank)-computer voltage under 0,5V the 0-10V interface is shut down and the pump can be operated manually. From 0,5V, the interface will take over control of the scheme. In the area of 0,5V-0,8V the pump is switched off. 1V starts the pump at the lowest level (15W) and run. At an increase of 0,5V will increase the level, also. So 1V = 15W 1,5V = 20W 2V = 25W….. 6,0V = 60W.
At a higher input voltage remains the Speedy controller to the maximum setting are available and no longer increases. The interface adapter behaves as if the corresponding would push the button. interface Sold Separately.
