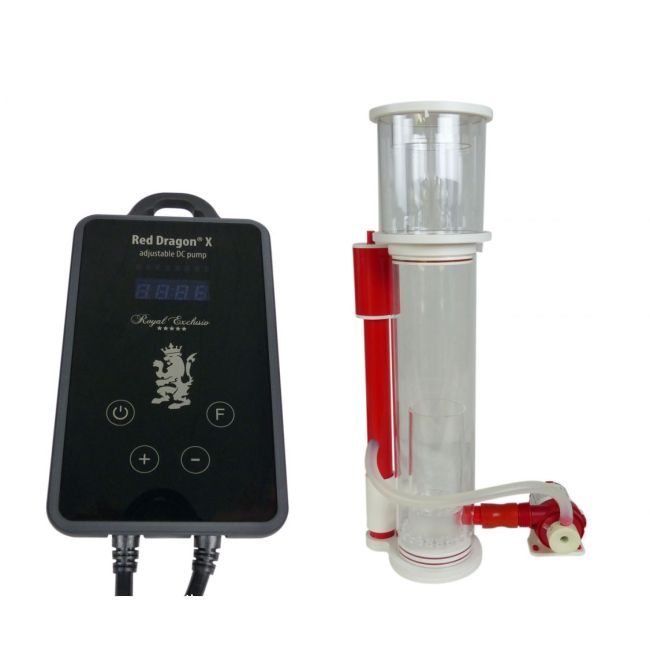

Royal Exclusiv Bubble King Supermarin 100

hard facts Bubble King^® Supermarin 100 RDX Light:
max. 600 l/h Air - 1.500 l/h Water = 1 Pump Red Dragon^® X 3000 DC 12V
Base plate: 16 cm x 13 cm / height ~ 58 cm

Technical data Bubble King^® Supermarin 100 internal:
Skimmer-pump: Red Dragon^® X 3000
Delivery rate: 200-600 l/h  Air inlet ~ 400-1.500 l/h Water inlet
wattage power: Pmax = 20 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) - Display
Adjustable in 16-steps from ~ 10W up to 20W
Operating voltage: 100-240 Volt 50-60 Hz (12V Technology)
Protection class pump: IP 68  control unit: IP 66
Weight pump without controller: 0,5 kg
Height of intake side: center 45 mm
Dimension pump: 80 mm wide / 130 (120 without inlet protection) mm length / ~ 110 (135 with socket) mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height

Reference setting on the test bench:
Water level sump ~ 18 cm, 2400 revolutions pump, 600l/h air intake
with 13.7 watts

Water level: ~ 150 mm up to ~ 250 mm
Weight skimmer: 4.5 kg inclusiv pump
Height of intake side: center 45 mm
Dimension skimmer with Pump: 260 mm wide / 160 mm length / ~ 580 mm height
