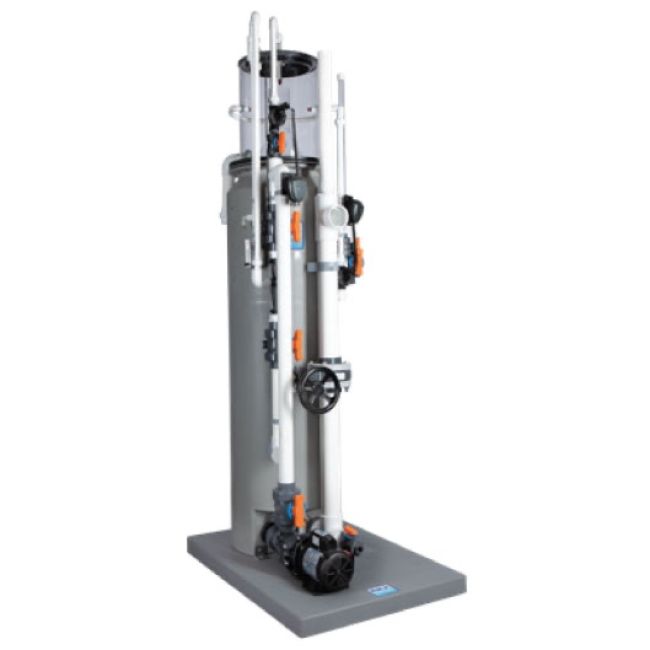

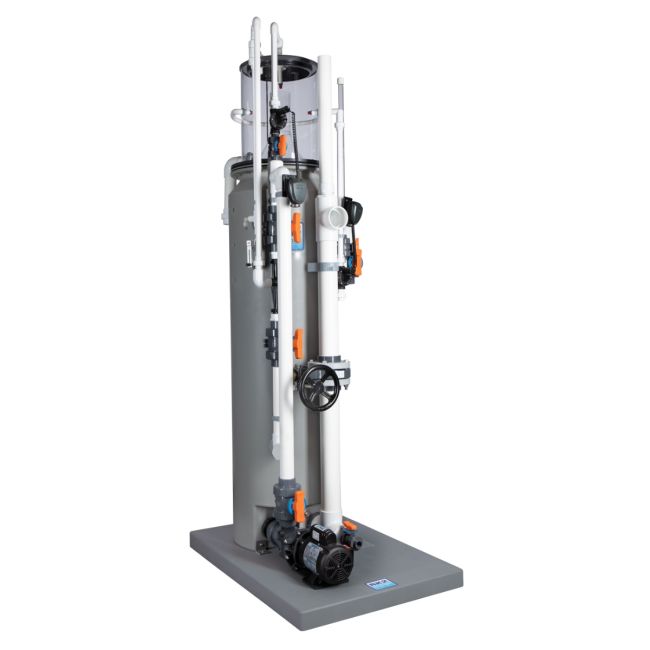

RK2 Systems RK50PE Protein Fractionator Skimmer

RK2 Systems Fractionator features include:

• Molded HDPE Reaction Chambers
• Counter Current Design
• *Wash Down System
• *Automated Venturi Cleaning (Optional)
• Tuned Mazzei® Venturi Pumps
• Kynar® Mazzei® Venturi Injectors
• Ozone Gas Connection Port
• Air Flow Meters
• Screw Top Lid
• Clear Sight Gauge
• Hayward® or Asahi® Ball Valves Standard
• Highest Quality MDM® Pumps Made in U.S.A.
• Spears® Piping and Fittings Made in U.S.A.

Design

The fractionation filtration process is simple and highly effective. Air, (in some cases ozone as well), are injected into the bottom of the reaction chamber via an ozone resistant venturi injector. The water to be filtered is introduced at the top of the chamber and exits at the bottom. This creates a mass mixing effect, with the water traveling cross current to the air, which is essential for the effective formation of foam.

The foam rises through the column and becomes more concentrated as it passes into the upper portion of the reaction chamber. The collection cup allows for the water to drain back into the reaction chamber via gravity, while the concentrated foam is ejected over the top of the riser tube and exported into a waste drain. The upper chamber is automatically washed down with rinse systems that keep the surfaces clean and prevent the foam from drying and inhibiting the ejection process.
