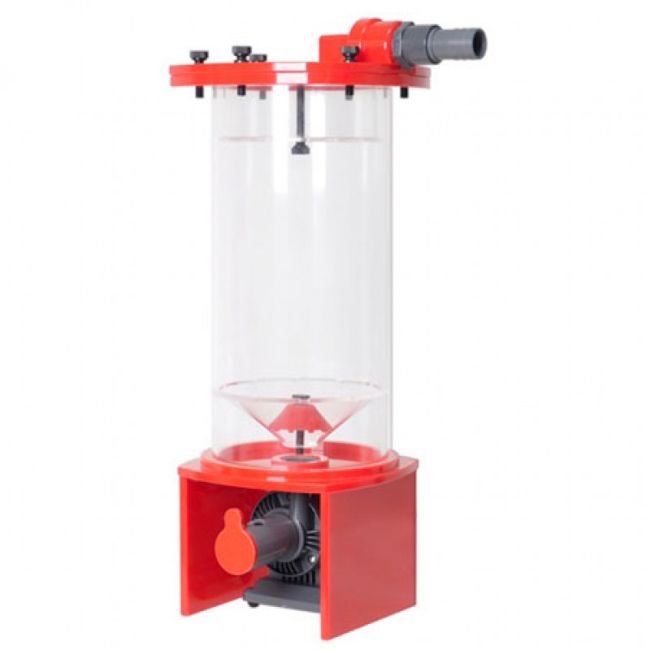

Reef Octopus Space Saver BioPellet Reactor

{ALL-IN-ONE} SPACE SAVING BIOPELLET REACTOR

Designed with the hobbyist in mind, these all-in-one reactors are simple to setup up, saves valuable space, conserves costly energy and allows for full control of the flow you provide to the media. Powered by our energy efficient water blaster pump to provide the most energy efficient and dependable feed flow for the bio-pellet media. Water is directly injected into the media chamber enhancing the pumps performance and provides even distribution of flow through the media. The water inlet /bottom chamber’s is a specially engineered structure that prevents the media from exiting the chamber and entering the pump when the power is off. A rigid sieve plate fixed on the top cover to prevent the leakage of pellets through the output of the unit. Unique in design this reactor doesn’t have a pipe in the middle of chamber making it super easy to remove the cover to refill the pellet media. The cover has four install orientations, makes it easy to be set up in your sump. Available in 3 sizes.

BR1000SS

RECOMMENDED AQUARIUMS 100～250 GALLONS

Technical Specs

• Capacity: 1500ml
• Suggested Amount:  ~1200ml*
• Diameter: 4.7″  | Height: 19.7″
• Footprint: 5.9″ x5.9″
• Output: ½” Direct PVC or barb fittings 1/2" or 5/8” barb fittings

Pump Information

Water Blaster 1000
Wattage: 15w

Requirements
- BioSphere Media
- Hose for Drain

BR2000SS

RECOMMENDED AQUARIUMS 185～400 GALLONS

Technical Specs

Capacity: 2000ml
Suggested Amount:  ~1600ml*
Diameter: 6″  | Height: 19.7″
Footprint: 7.9″ x7.9″
Output: ½” Direct PVC or barb fittings 1/2" or 5/8” barb fittings

Pump Information

Water Blaster 2000
Wattage: 20w

Requirements
- BioSphere Media
- Hose for Drain

BR3000SS

RECOMMENDED AQUARIUMS 250～500 GALLONS

Technical Specs

Capacity: 2500ml
Suggested Amount:  ~2200ml*
Diameter: 8″  | Height: 23.2″
Footprint: 10.2″ x10.2″
Output: ½” Direct PVC or barb fittings 1/2" or 5/8” barb fittings

Pump Information

Water Blaster 3000
Wattage: 32w

Requirements
- BioSphere Media
- Hose for Drain

Manufacturer Warranty - One (1) year warranty on reactor body three (3) year on Water Blaster pump.

*depends on brand of BioPellet media used.
Note: BioSphere media recommended
