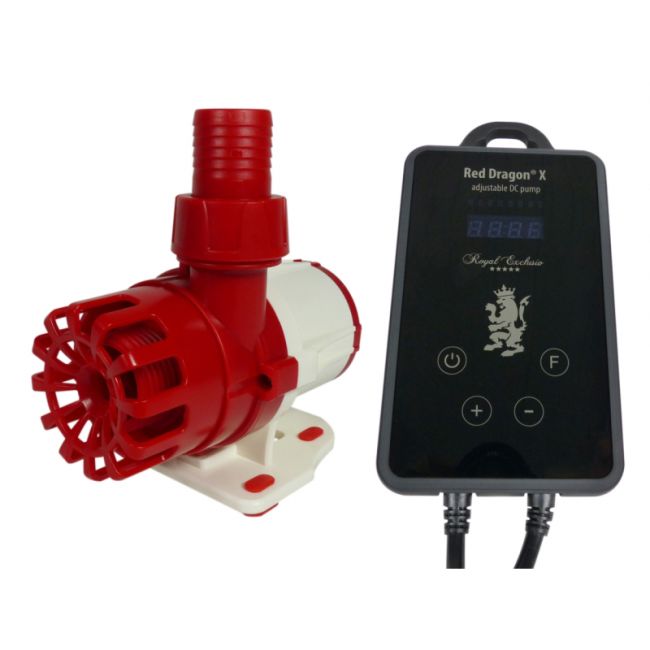

Technical data Red Dragon® X pump 40 Watt 3,5 m³: max. 40 Watt/h 3,75 mtr. pressure height Speed adjustable Brushless DC pump Revolution per minute (rpm) - Display Adjustable in 16-steps from ~ 7W up to 40W Intake side 25 mm (0.75") - pressure side 25 mm (0.75") Operating voltage: 100-240 Volt 50-60 Hz (12V Technology) Protection class pump: IP 68 control unit: IP 66 Weight pump without controller: 0,6 kg Height of intake side: center 45 mm Dimension pump: 80 mm wide / 130 (120 without inlet protection) mm length / ~ 110 (135 with socket) mm height Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
Technical data Red Dragon® X pump 40 Watt 3,5 m³: max. 40 Watt/h 3,75 mtr. pressure height Speed adjustable Brushless DC pump Revolution per minute (rpm) - Display Adjustable in 16-steps from ~ 7W up to 40W Intake side 25 mm (0.75") - pressure side 25 mm (0.75") Operating voltage: 100-240 Volt 50-60 Hz (12V Technology) Protection class pump: IP 68 control unit: IP 66 Weight pump without controller: 0,6 kg Height of intake side: center 45 mm Dimension pump: 80 mm wide / 130 (120 without inlet protection) mm length / ~ 110 (135 with socket) mm height Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
Features
Saltwater resistant M4 grade 2 titanium screws
Saltwater resistant parabolic rubber feet for acoustic decoupling
Extreme low noise brushless DC-delivery pump with external power electronics
High efficient technology, Sine Wave for very quiet running
Inlet and Outlet complete with DIN connection, compact dimensions
Easy usage and maintenance, low risk of calcification
compact design against vibrations and oscillation
CE conformity, developed and built
high quality touchscreen display with feeding function (protection against dry-running, over heating, over voltage, blocking etc.)
Includes
Pump with 2m supply line
Controller with 1,5m supply line
Power plug with 1,5m supply line / rubber connector
