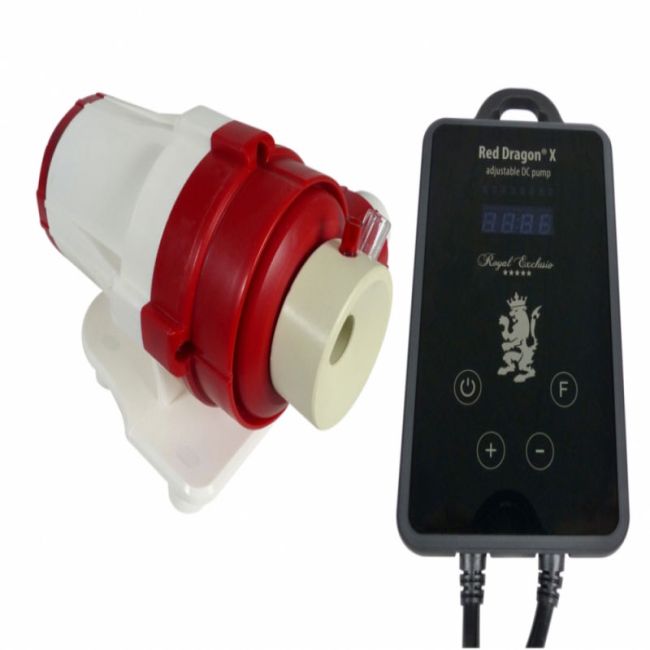

Red Dragon X skimmer pump 60 Watt / 2500 l/h for BK DC - SM - DL 250 + 300

Technical data Red Dragon^® X DC skimmer pump:
With needle wheel
adjustable DC-pump with 24V / 60W

Delivery rate: 500-2.500 l/h  Air inlet ~ 600-6.500 l/h Water inlet
wattage power: Pmax = 60 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) - Display
Adjustable in 8-steps from ~ 8W up to 63W
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68  control unit: IP 66
Weight pump without controller: 1,25 kg
Height of intake side: center 45 mm
Dimension pump: 90 mm wide / 150 mm length / ~ 130 mm height
Dimension control unit: 30 mm wide / 95 mm length / ~ 105 mm height

Suitable for:
für Bubble King^® Double Cone 250 + 300
für Bubble King^® SuperMarin 250 + 300
für Bubble King^® DeLuxe 250 + 300

• Saltwater resistant M4 grade 2 titanium screws
• Saltwater resistant parabolic rubber feet for acoustic decoupling
• Extreme low noise brushless DC-delivery pump with external power electronics
• High efficient technology, Sine Wave for very quiet running
• Inlet and Outlet complete with DIN connection, compact dimensions
• Easy usage and maintenance, low risk of calcification
• compact design against vibrations and oscillation
• CE conformity, developed and built
• high quality touchscreen display with feeding function
  (protection against dry-running, over heating, over voltage, blocking etc.)
• included in the scope of delivery:
  • Pump with 2m supply line
  • Controller with 1,5m supply line
  • Power plug with 1,5m supply line / rubber connector
  • with inlet protection
  • with 20mm socket and 25mm socket with O-rings
  • Manual German/English
