IceCap AC Skimmer Controller
SKU
IceCap AC Skimmer Controller
$50.00
Ships Next Business Day
Works with AC Protein Skimmers and Waste Collectors

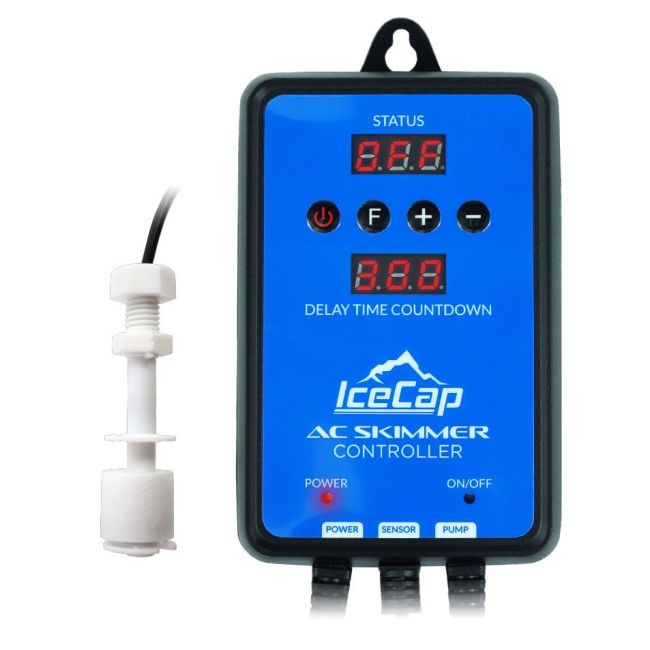

The IceCap AC Skimmer Controller easily connects to a skimmer lid or waste collector (sold separately) and protects from overflow. It also includes a time delay and feed mode for any AC protein skimmer. The controller with a float switch sensor and a single grounded power jack that supports up to 10 amps of power.
Features
- Grounded output heater control (single outlet)
- Accommodates skimmer pumps up to 10 amps
- Float Switch Overflow Protection
- Feed Timer (10, 30, 60min)
- 5-Minute Time Delay
- 1-year limited warranty
Controller Specifications
Input Power: 100~240VAC
Frequency: 50Hz/60Hz
Relay Contact Capacity: 10A
Controller Body Dimensions: 3.125in x 5.375in x 1.125in (LxWxH)
Float Switch Cord Length: 6ft
Pump Outlet Cord Length: 7in
Delay Time: 5 Minutes
Feed Timer Options: 10min, 30min, 60min
Working Span: 1-24 Hours
Float Switch Probe Hole Size: 3/8in
Controller Only - Requires protein skimmer and/or waste collection container.
NOTE: For Indoor household use only
Red <POWER> LED indicates power ON
Blue <ON/OFF> LED indicates heater power is ON
Button Functions
Hold and press the <POWER> button for 5 sec. to switch the Controller ON or OFF.
Press the <F> button to activate the feed mode, which increases the intervals by 10, 30, and 60 minutes.
Press the <+> or <-> buttons to adjust the running interval for the skimmer pump. Users can modify the interval length (0-24 hours) during which the skimmer will remain powered. The interval starts when the controller is set.
