GHL Doser 3 EXT
SKU
GHL-DOSE3-EXT
Starting at:
$479.90
See Individual Item
Only %1 left

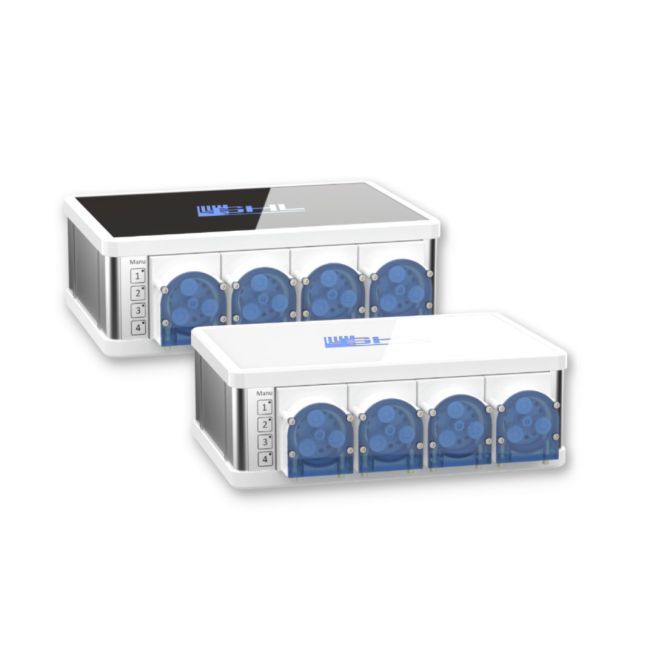

Extension dosing pump unit, 4 peristaltic pumps with planetary gear and stepper motors, with power supply, and tube adapters.
Not a standalone product; requires GHL Doser Stand Alone or ProfiLux (from model 4) to operate this device.
Includes Free Magnetic Dosing Tube Holder.
Not a stand-alone unit.
The GHL Doser 3 EXT must be controlled via a ProfiLux Controller (Model 4 or higher) or a GHL Doser 2.x (Maxi/Standard) Stand Alone.
Equipped with new precision-engineered 24V stepper motors featuring planetary gear technology, the Doser 3 EXT delivers exceptional accuracy, even for the smallest dosing volumes (0.1 mL).
Expand your dosing system up to 16 pumps:
1x Stand Alone + 3x EXT Doser 3 / 2.x
ProfiLux Controller (model 4 or higher) + up to 4x EXT Doser 3 / 2.x
Technical specifications:
The flowrates and accurate dosing volumes are adjustable up to 0,1 mL, approximately 8 mL/minute – 80 mL/minute.
Color: Black or white
Dimensions: 8.66″ x 5.91″ x 3″ (without pumps) / 220 x 150 x 75 mm (without pumps)
Scope of Delivery:
Dosing pump unit EXT (black or white), tubing adapters, power supply.
| Manufacturer | GHL |
|---|
