Royal Exclusiv Bubble King Double Cone 150 with Red Dragon X DC 12V
SKU
RE-507/RDX
$876.34
Usually Ships in 1 - 2 Business Days

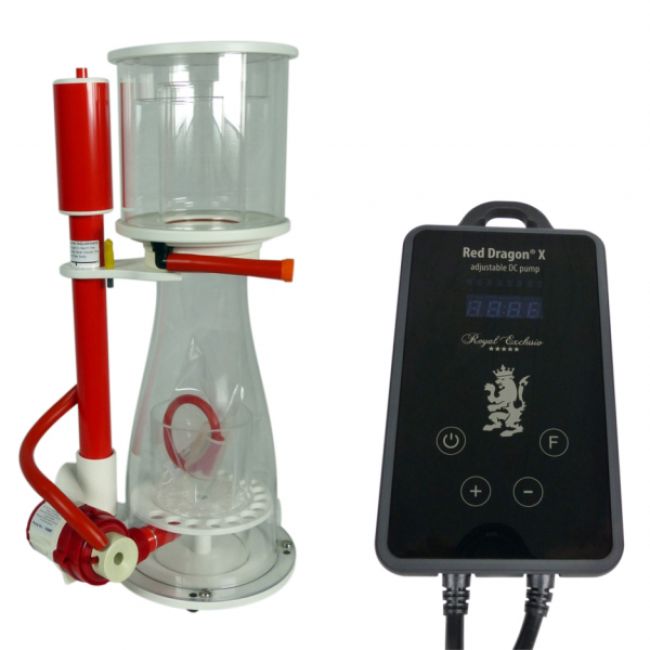

Bubble King® Double Cone 150 with Red Dragon X DC 12V controllable pump
For aquariums/tanks up to 100 gallons (375 liter)
hard facts Bubble King® Double Cone 150:
max. 200 gph (750 l/h) Air - 900 gph (3.500 l/h) Water = 1 Pump RD X 3000 DC 12V
Base plate: 7.67ʺ x 9.65ʺ / height ~ 19.69ʺ (19,5 cm x 24,5 cm / height ~ 50 cm)
Technical data Bubble King® Double Cone 150:
Skimmer-pump: Red Dragon® X 3000
Delivery rate: 200-750 l/h Air inlet ~ 300-3.500 l/h Water inlet
wattage power: Pmax = 30 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) - Display
Adjustable in 8-steps from ~ 7W up to 30W
Operating voltage: 100-240 Volt 50-60 Hz (12V Technology)
Protection class pump: IP 68 control unit: IP 66
Water level: ~ 5.91ʺ up to ~ 7.87ʺ (~ 150 mm up to ~ 200 mm)
Weight pump without controller: 0,6 kg
Height of intake side: center 45 mm
Dimension pump: 80 mm wide / 130 (120 without inlet protection) mm length / ~ 110 (135 with socket) mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
- Saltwater resistant M4 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external power electronics
- High efficient technology, Sine Wave for very quiet running
- Inlet and Outlet complete with DIN connection, compact dimensions
- Easy usage and maintenance, low risk of calcification
- compact design against vibrations and oscillation
- CE conformity, developed and built
- high quality touchscreen display with feeding function
(protection against dry-running, over heating, over voltage, blocking etc.) - included in the scope of delivery:
- Pump with 2m supply line
- Controller with 1,5m supply line
- Power plug with 1,5m supply line / rubber connector
- Nozzle with Air- and Ozone connection
- Manual German/English
Dimension skimmer without pump:
195 mm wide / 245 mm length / ~ 505 mm height
7.67ʺ wide / 9.56ʺ length / ~ 19.69ʺ height
Dimension skimmer with pump (90° to the torque tube):
245 mm wide / 260 mm length / ~ 505 mm height
9.56ʺ wide / 12.60ʺ length / ~ 19.69ʺ height
Dimension skimmer with pump (compared the torque tube):
195 mm wide / 310 mm length / ~ 505 mm height
7.67 mm wide / 12.20ʺ length / ~ 19.69ʺ height
Heigth silicon outlet (cleanout) ~ 12.60ʺ
Weight skimmer: 5 kg inclusive pump.
