AquaLogic Elecro Cygnet - Titanium Inline Heaters

SKU
AL-CYGNET-T
Starting at: $599.00
Factory Direct
Only %1 left

The AquaLogic Elecro CYGNET Titanium Inline Heater are available in 500 watt, 1000 watt and 1500 watt configurations. Keep reading below to see the specs on each model.







Product Details

Aqualogic - Elecro - CYGNET - Titanium - Inline Heater - 0.5 Kw ( 500 Watts ) - 115V

The Elecro Cygnet Titanium Aquatic Pond Heater is the latest addition to our growing product range. Titanium flow tube and elements ensure its suitability for use on all freshwater and saltwater aquatic systems. With outstanding resistance to fatigue and erosion, excellent strength and has super corrosion resistance. This new heater is also suitable for some chemical applications.

All units come fully equipped with manual control for the precise all season temperature control demanded by professional fish keepers, breeders & hobbyists. Our highly sensitive flow switch, high limiting safety thermostat and integral contractor / relay are fitted as standard. They are easy to install with the option of water flow from either direction.


Key Features:
  • 0.5kw (500 Watts)
  • 110~120 Volts AC w/3ft Power Cord
  • Stay-clean vortex inducing Titanium heating elements
  • Analogue Temperature Control
  • External Reversible Flow Switch - Allows the water to flow through either direction
  • High Limit Thermostat Internal Fail Safe, manual reset thermostat, for positive safety
  • Control thermostat 2ºF to 35ºF differential
  • Screw fit adapters 1-1/4" or 1-1/2" In and Out or 1-1/2" ABS union disconnects for rigid pipe
  • Approximate dimensions: 17" L x 6" W x 8" H
  • Minimum flow requirement: 265 GPH
  • Maximum flow velocity: 2580 GPH
  • Safety thermal cut out (manual reset)
  • Minimum Pipe Size: 1-1/4"
  • May be floor or wall mounted
  • Unit should be installed within a dry weatherproof enclosure
  • See instructions for Amperage Requirement for this unit
  • 1 Year limited manufacturer's warranty

Product Details

Aqualogic - Elecro - CYGNET - Titanium - Inline Heater - 1 Kw ( 1000 Watts ) - 115V

Key Features:
  • 1.0kw (1000 Watts)
  • 110~120 Volts AC w/3ft Power Cord
  • Stay-clean vortex inducing Titanium heating elements
  • Analogue Temperature Control
  • External Reversible Flow Switch - Allows the water to flow through either direction
  • High Limit Thermostat Internal Fail Safe, manual reset thermostat, for positive safety
  • Control thermostat 2ºF to 35ºF differential
  • Screw fit adapters 1-1/4" or 1-1/2" In and Out or 1-1/2" ABS union disconnects for rigid pipe
  • Approximate dimensions: 17" L x 6" W x 8" H
  • Minimum flow requirement: 265 GPH
  • Maximum flow velocity: 2580 GPH
  • Safety thermal cut out (manual reset)
  • Minimum Pipe Size: 1-1/4"
  • May be floor or wall mounted
  • Unit should be installed within a dry weatherproof enclosure
  • See instructions for Amperage Requirement for this unit
  • 1 Year limited manufacturer's warranty



Product Details

Aqualogic - Elecro - CYGNET - Titanium - Inline Heater - 1.5 Kw (1500 Watts ) - 115V

Key Features:

  • 1.5kw (1500 Watts)
  • 110~120 Volts AC w/3ft Power Cord
  • Stay-clean vortex inducing Titanium heating elements
  • Analogue Temperature Control
  • External Reversible Flow Switch - Allows the water to flow through either direction
  • High Limit Thermostat Internal Fail Safe, manual reset thermostat, for positive safety
  • Control thermostat 2ºF to 35ºF differential
  • Screw fit adapters 1-1/4" or 1-1/2" In and Out or 1-1/2" ABS union disconnects for rigid pipe
  • Approximate dimensions: 17" L x 6" W x 8" H
  • Minimum flow requirement: 265 GPH
  • Maximum flow velocity: 2580 GPH
  • Safety thermal cut out (manual reset)
  • Minimum Pipe Size: 1-1/4"
  • May be floor or wall mounted
  • Unit should be installed within a dry weatherproof enclosure
  • See instructions for Amperage Requirement for this unit
  • 1 Year limited manufacturer's warranty


Titanium Models

Model
Number

KW

Phase

Amps

Length
(in)

Width
(in)

Height
(in)

AL-KC-0-5-115T

0.5

1

4.5

17"

6"

8"

AL-KC-1-0-115T

1.0

1

9

17"

6"

8"

AL-KC-1-5-115T

1.5

1

13

17"

6"

8"

FLOW RATE FOR ALL UNITS:     Minimum:  4.5gpm        Maximum: 43 gpm




Rule of thumb on pond heating: 1 Watt per Gallon = 10 degree rise in water temperature. Example 1000 watt (1.0 kw) to heat a 1000 gallon pond by 10 degrees over a 24 hour period.

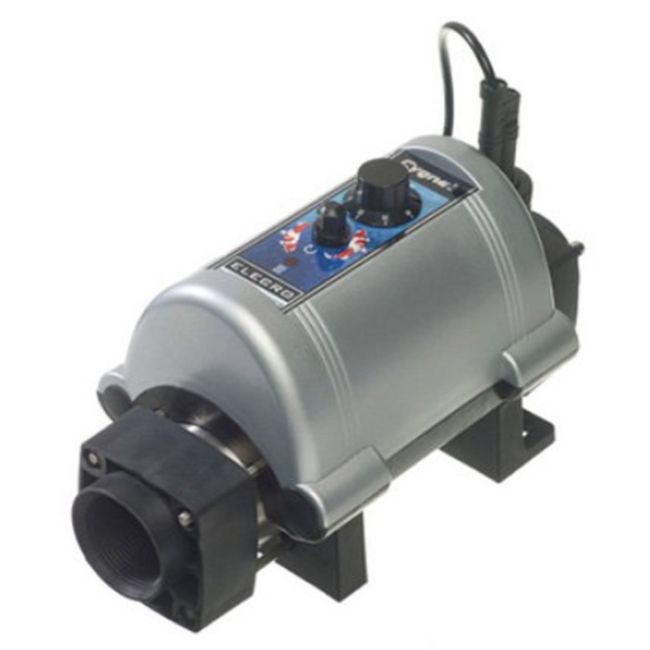

Unit may vary slightly from photo
More Information
Manufacturer Aqua Logic
MANUAL No
