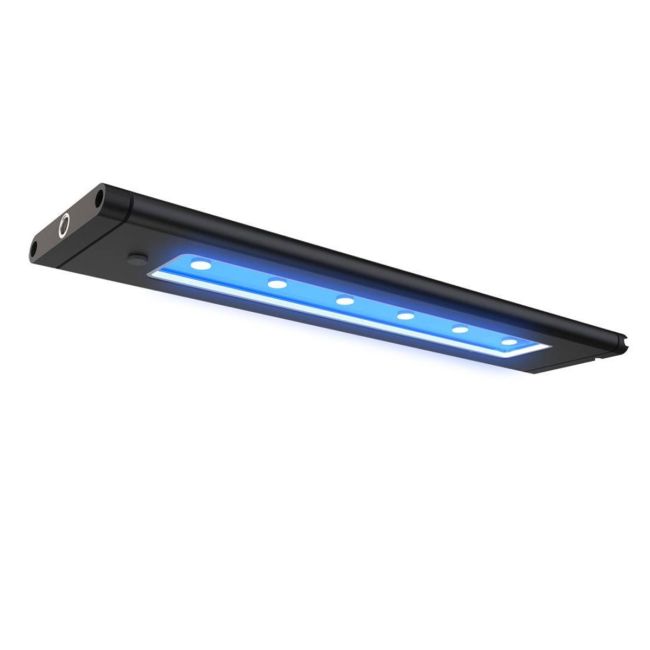

Aqua Illumination Blade™ Grow Smart Marine Strip LED

Spectrum



A balance of blue and white diodes efficiently addresses the photosynthetic needs of coral. The Blade Grow delivers output in the deep blue through blue range of the spectrum (400-500 nm) which is proven to be a highly effective marine spectrum range.





LEDs

The AI Blade utilizes a cluster group configuration. Each Blade size includes roughly one cluster group per foot. Tight grouping and balanced diode placement contribute to the incredible balance and shimmer that the Blade platform delivers. The Blade Coral Grow includes the following 24 diodes per cluster group.

• 12 – Royal Blue
• 6 – Cool White
• 6 – Blue



EdgeField™ Optics



Optics are one of the most important components of an advanced lighting system.  Edgefield™ technology incorporated in the Blade delivers even PAR, smooth color mixing and exceptional spread.

Edgefield optics, designed exclusively for the Blade, provide an incredible, 95 degree spread while achieving unmatched light mixing along the length of the blade. The specular exit surface presents a crisp and natural shimmer in your aquarium.





Bright-Sized





Blade sizes up to 39.1 in.

Tank Rest Included

For Blades sized up to 39.1 inches the Low Profile Tank Rest is included. The tank rest extends up to 4.5 inches on either side of the blade (for a total of 9 inches).



Blade sizes over 39.1 in.







Mounting Clips Included

For Blades over 39.1 inches Blade Mounting Clips are included. These clips are compatible with the AI HMS Single-Arm and HMS Hanging Kit rails.  Different application? No problem, the Blade has many other mounting options available or use the clips with your custom mount.



Water Resistant

Blade is not only versatile but built to last in the harsh-environment of marine aquariums. Blade meets IP66 standards which indicate the highest protection against particles and a high level of protection against water.



Silent Running

Blade Hanging



3 lights l 4 lights l 6 lights









The Hybrid Mount allows for Blade mounting using either the AquaIllumination Hydra or EcoTech Radion pendant fixtures. Each kit contains two mounting bars and clips to use with the HMS, RMS or equivalent multi-light hanging kits. Works with one or multiple Hydra or Radion fixtures (not for use with HMS or RMS multi-light tank mounted rails).

Coming soon.





M8 Mounting Thread



Want even more mounting options? The Blade includes a M8 mounting thread at each end. The custom mount possibilities are endless.
