Axis pumps offer full control, wireless smart device programming, DC motor quiet operation, and output calibration. Features that have traditionally been reserved for considerably larger and more expensive pumps. These features allow for:
- Coordinate Feed/Maintenance Modes: Turn all your AI pumps on or off with the control button on a single pump.
- Prevent back-siphon: With calibration set, instead of powering off, a pump will continue to run without producing flow, preventing siphoning, which could result in air-bubbles when the pump resumes its scheduled operation.
Simple Built-In Control
All AI devices include smart control standard. Choose from the myAI or Mobius app on any iOS or Android device to easily set up or program your AI equipment. The Axis pumps can also be controlled via Apex Fusion by utilizing the MXM module.
Included Pump Modes
Schedule: Create a custom program with changing flow over time.
Feed: Temporarily reduces flow to prevent food from being cycled into the overflow.
Calibrate: Calibrate your pump to your aquarium. Set max, min, and neutral flow levels.
Each Model Axis Pump Includes:

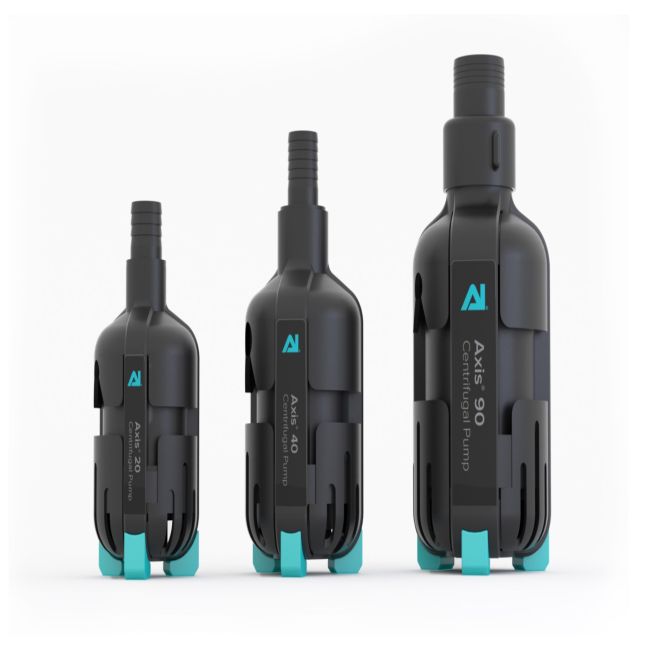

Axis Centrifugal Pump
Barbed Output Nozzle
Barbed Output Nozzle
Power Supply
AI Axis 20 Specifications:
With Axis 20, you get exactly what you need for aquariums up to 20 gallons.
Max Head: ≈5ft (≈1.5m)
Flow Rate: ≈185gph (≈700lph)
Input: 100-240VAC, 50/60Hz, 1A
Power Consumption: Variable, 12W max
Recommended Tank Size: Up to 15 gallons
Barbed Output Nozzle Sizes: 0.5" (12mm) | 0.625" (16mm)
AI Axis 40 Specifications:
With Axis 40, you get exactly what you need for aquariums up to 40 gallons.
Max Head: ≈9 ft. (≈2.8 m)
Flow Rate: ≈400 gph (≈1500 lph)
Input: 100-240VAC, 50/60Hz, 1A
Power Consumption: Variable, 20W max
Recommended Tank Size: Up to 40 gallons
Barbed Output Nozzle Sizes: 0.625" (16mm) | 0.75" (20mm)
AI Axis 90 Specifications:
With Axis 90, you get exactly what you need for aquariums up to 90 gallons.
Max Head: ≈10 ft. (≈3 m)
Flow Rate: ≈925 gph (≈3500 lph)
Input: 100-240VAC, 50/60Hz, 1A
Power Consumption: Variable, 40W max
Recommended Tank Size: Up to 90 gallons
Barbed Output Nozzle Sizes: 0.75" (20mm) | 1.0" (25mm)
