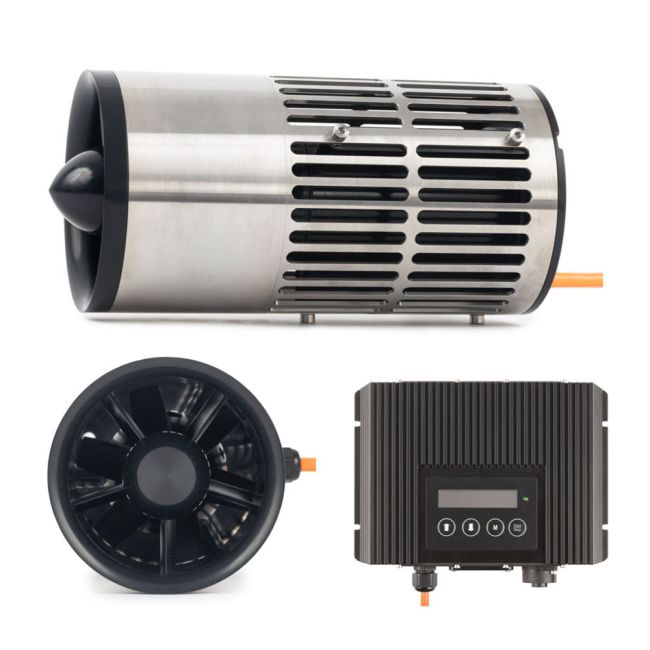

Abyzz AFC150 Flow Pump

The innovative Abyzz Flow Cannon AFC150 with its high-end design, including a titanium rotor unit, titanium mounting frame, and carbon fiber parts, consists of the pump itself and a powerful and programmable driver. With an efficiency rating of more than 90% and the exact adjustment for the application, it offers a very energy-saving solution.

The integrated bearing flushing provides optimum protection against calcination and, in conjunction with the silicon carbide bearings and special hard metal shaft, ensures low-maintenance operations.

All metal parts are made out of titanium grade 2, and other parts are made out of nylon and carbon fiber. This composition ensures a long lifetime, thus granting the highest sustainability and lowest carbon footprint. Several mounting options are offered to suit any needs, and due to many mounting options, even a customer-specific mounting can be done very easily. The special 3-bladed prop and a well-designed hydraulic pump operate almost without any noise or vibration. An additional coat flow ring provides low output speed and long laminar flow. Easy programming (as in any Abyzz pump) and the possibility to link to external controllers offer a wide field of applications.

The materials used are designed to have a long lifetime and meet the highest requirements and quality standards. This product was developed and manufactured in Germany by Venotec.

*Mounting Hardware Sold Separately

Applications

• Freshwater and Saltwater Aquaria
• Large Pond Filter Systems
• Creeks
• Large Scale Aquariums
• Commercial Applications
• Aquaculture

Abyzz AFC-150 Pump Specifications

Flow (Nominal): 14,280 gph
Flow (Maximum): 15,840 gph
Discharge speed (max): 3,3m/s
Rated input: 4-150W
Operating Voltage: 100...240V~
Ambient temperature: +1…50°C (35…122°F)
Maximum immersion depth: 8 ft / 2.5 m
Pump cable length: 13ft/ 4m

Venotec reserves the right to make technical changes without notice.
