Abyzz A400 Adjustable Performance Pump

Sku: VA-A400-3

More Views

Abyzz A400 Adjustable Performance Pump

Sku: VA-A400-3

$2,599.99

Availability: Usually Ships in 1 - 2 Business Days After Submission of Order

Reward Points You will earn 20 Points for writing a review and 20 Points for rating this product.
  • 6,060 GPH BOOSTMODE® max flow rate
  • Internal or external application
  • Super silent operation
  • Fully controllable from 0-100% in 1% increments
  • Available in 3meter & 10m Driver/Controller Connecting Cable
  • 10 Year Warranty!

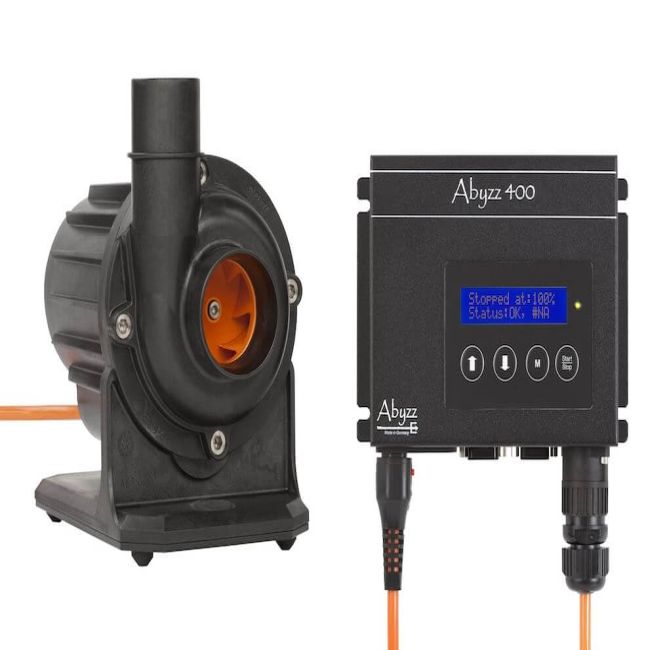

From titanium impellers to the sinusoidal three-phase synchronous motor, the materials used in the Abyzz pumps have been carefully selected for harmonious compatibility and integration. The simple to use controller with bright LCD screen boasts a full menu allowing you to know the status of the pump, power usage, RPM, overall percentage of flow, temperature and more.

* Required Fields

Description

Details

The innovative Abyzz A400 pump with its titanium impeller consists of powerful and programmable, menu-controlled, electronic driver and a sinusoidal, three-phase synchronous motor (pump).

The motor operates at an efficiency factor of over 90% which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution to traditional power hungry higher voltage pumps.

The menu controlled driver and motor run on an mere 12V and because of that it can be used in a myriad of applications.

The integrated flushing bearing provides optimum protection against calcification (Calcium Carbonate deposits - CaCO3). In conjunction with the silicon carbide bearings and special hard metal shaft, this feature provides for low-maintenance operations.

The materials used to manufacture all of these components have been carefully selected so as to be harmoniously integrated into the overall design to look great, ensure a long operational lifetime, and meet the most demanding requirements and highest quality standards.

This product was developed and is manufactured in Germany by Venotec.

Technical Specs:

  • BOOSTMODE® max flow rate: 6,060 gph / 25,000 lph
  • Normal mode max flow rate: 4,800 gph / 18,600 lph
  • Discharge flow speed: max 7,5 m/s , nominal 6.4 m/s
  • Delivery height: max. 30.55 ft / 9,4 m
  • Rated input: 4W-400W
  • Input voltage: 110V~ @ 60Hz
  • Operating Voltage: 12V
  • Ambient temperature range for operation: 35.5°F - 104°F / +2°C - 40°C
  • Maximum operating pressure: 17.40 psi / 1,2 bar
  • Maximum immersion depth: 6.5 ft / 2m
  • Pump cable length: 9.9 ft / 3m
  • Inlet/outlet connections: 50mm/40mm (suitable for PVC/ABS adhesive fittings)

What's In The Box:

  • Abyzz A400 pump and 110V 60hz driver
  • Power cable: 5ft / 13M
  • Driver/Controller connecting cable: 6.5 ft / 2 meters
  • Operating manual
